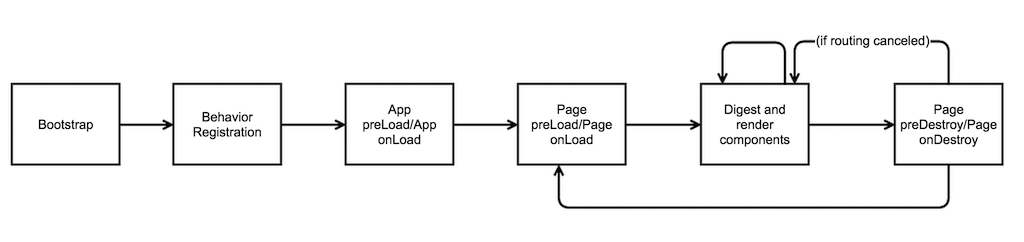

1. Bootstrap
   • All FEF JavaScript and css files downloaded.
   • Behavior definition JavaScript files downloaded but not yet executed.
   • Order of downloading:
     • The core FEF library files (scripts and stylesheets) are included.
     • Derived flavors of FEF are included as additional scripts and stylesheets.
     • App-defined JavaScript and css files (the "includes" section of the includes.json file).
2. Behavior registration
   • All three categories of includes - each define behavior registration functions
   • App-defined behavior definition functions are those in the "behaviors" section of the includes.json file.
   • Behaviors registration functions are executed in the order they were included.
   • Behaviors are defined for "extensible objects".
     • Components are one example of an extensible object.
     • Every extensible object has a definition and a runtime.
       • Definition is the set of behaviors applied to the extensible object.
       • Runtime is an application instance of the extensible object.
   • Some examples of behaviors that might be defined (not an all encompassing list below!):
     • Component definitions (ie: Facade.Components.Docbar.setLabel(...)
     • Strategy definitions
       • Data Strategy
       • Save Stratgy
       • Buffering Strategy
     • Function registrations
       • Facade.FunctionRegistry.register("my.function.name", function(behaviorFn, args) { ... });
     • Trigger registrations (will only run at specified timing in app lifecycle)
       • Facade.Behaviors.App.onLoad(function(behaviorFn, args) { ... });
   • Behaviors that are describing a non-function value such as a string or integer can be supplied statically or dynamically.
     • Statically meaning passing the primitive value itself, ie: Facade.Behaviors.Section.forName("mySection").setLabelKey("mySectionLabel");
     • Dynamically meaning passing a function that will calculate the primitive value: Facade.Behaviors.Section.forName("mySection").setLabelKey(function(behaviorFn, args) { return "mySectionLabel"; });
   • Behaviors describing a function value should always be passed a function.
   • Behavior definitions can be limited to a subsection of extensible objects using the following filters:
     • forName - limits the definition to one instance of the extensible object with the given name (if multiple exist with that name, applies to the first one)
     • forKind - limits the defintion to all extensible objects labeled with the given "kind".
     • forPage - limits the definition to extensible objects only when we are on the given page
     • forType - limits the definition to extensible objects only when the path is pointing to the given type
     • forPath - limits the definition to extensible objects only when the path is pointing to the given type and path
   • Runtimes are generated later in the lifecycle, but will be defined based on behaviors registered here and in the core code.
     • The behaviors used by runtimes are based on, in order:
       • Behaviors defined in the page template itself
       • specificity (see filters)
       • when it was defined (order in includes.json and in script itself)
3. Begin App Load

1. App triggers are run after behaviors have been registered.
2. No pages will load or render until these triggers have completed running and have resolved any asynchronous calls (aka "promises").
3. "core.app.preLoad" Trigger
   • Register a trigger on this event by calling Facade.Behaviors.App.preLoad(function(behaviorFn, args) { ... });
   • Distinct from App onLoad, it is best used for:
     • initiating fetches of remote data and designs that are used app-wide
     • making later page/component renderings much faster due to server-side fetches already occurring
   • The return value from each trigger may be a promise, which will cause the bootstrap to halt until it completes. For example...

     // this will halt because it will wait for the return to complete
     Facade.Behaviors.App.preLoad(function(){
      return Facade.Resolver.find("$AbcD1", "123");
     });
     // this will not halt - it will move on before the query completes
     Facade.Behaviors.App.preLoad(function() {
        Facade.Resolver.find("$XyzD1", "789");
     });

4. "core.app.onLoad" Trigger
   • This trigger is called only when all App preLoad triggers have completed and their promises have resolved.
   • It is best used for:
     • modifying data, designs, picklists, etc. that were fetched from the server in the preLoad step
     • creating and registering client-side data, picklists, designs, etc that is used app-wide
   • The return value from each trigger may be a promise, which will cause the UI to halt loading until it completes.
   • May also initiate server-side fetches here, but it is recommended to do this in preLoad if possible.
   • Localizations were fetched in the preLoad step so bundles are accessible starting at this step, if needed
5. Once App onLoad has completed, determine the starting page via the "core.page.startingPage" function.
6. Then load first page.

1. Page triggers are run after app has completed loading and the page has been set.
2. Page will not render until these triggers have completed running and have resolved any asynchronous calls (aka "promises").
3. "core.page.preLoad" Trigger
   • Has the same role as App preLoad but on a page level.
   • Uses "core.page.startingPage" function to determine starting page to load if no page is already loaded.
     • Defaults to the pages.json entry with start=true.
   • Distinct from Page onLoad, it is best used for:
     • initiating fetches of remote data and designs that designer may not want to be done on app load, because:
       • page is not frequently used
       • page is not the starting page and do not want to delay app loading for these resources
   • The return value from each trigger may be a promise, which will cause the UI loading to halt until it completes.
4. "core.page.onLoad" Trigger
   • Has the same role as App onLoad but on a page level.
   • It is best used for:
     • Modifying data, designs, picklists, etc. that were fetched from the server in the preLoad step.
     • Creating and registering client-side data, designs, picklists, etc. that are only needed for this page.
   • The return value from each trigger may be a promise, which will cause the UI loading to halt until it completes.
5. Verification that primary data has been set to either actual Data or ResolvingData of the same type as that in the Page.
   • If a page has no type, then it is an error for the primary data to have been set.
6. Render page

1. Template compilation
   • FEF parses the page's template.
   • Component runtimes explicitly declared in the template are built.
     • Each component has a render method which will render some DOM, as well as declare other components (which then call their render methods).
   • Component runtimes are built with following attributes (among other more specific ones):
     • Path-relative to the primary data currently in scope, if no other data is specified.
     • Respecting the edit mode and mask currently in scope.
     • If backing data is a ResolverData, some components have a temporary resolving state where there is an opportunity to represent a loading message. When data finishes loading component will render normally.
2. Digest
   • Component runtimes are regenerated on every digest loop.
   • However, once the DOM is rendered, for performance reasons, only certain changes to the component runtime will register a re-render of the DOM for that component.
     • Example of attribute that triggers re-render: if backing data of a field is changed independent of a user editing it directly, field should get re-rendered with corrected data.
     • If we watched every component attribute for a change, that would slow down the digest loop tremendously, so we made the trade-off to favor performance over flexibility - we can continue to add watched attributes as they are needed, but it is harder to take them away if they are not needed.
3. If page is changed, begin navigating away from current page.

1. Page navigation request (e.g. via Facade.PageRegistry.setCurrent)
2. page preDestroy
   • Allows for cancellation of the navigation event.
   • The return value from each trigger may be a promise, which will cause the navigation to halt until it completes.
3. page onDestroy
   • Opportunity to perform final cleanup.
   • The return value from each trigger may be a promise, which will cause the navigation to halt until it completes.
4. FEF inspects the next page's type; if it differs from the previous page, the primary data is cleared.
5. The new page is set.
6. Page loading continues.
